Trailer Dump Truck 3 Axles 60Tons 11m for Mining and Construction business

Trailer Dump Truck 3 Axles 60Tons 11m for Mining and Construction business

  • Trailer Dump Truck 3 Axles 60Tons 11m for Mining and Construction business
  • Trailer Dump Truck 3 Axles 60Tons 11m for Mining and Construction business
  • Trailer Dump Truck 3 Axles 60Tons 11m for Mining and Construction business
  • Trailer Dump Truck 3 Axles 60Tons 11m for Mining and Construction business
Trailer Dump Truck 3 Axles 60Tons 11m for Mining and Construction business
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: SINOTRUK
प्रमाणन: ISO/3C/BV/IFA/SGS
Model Number: 3 Axles 30-60Tons
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1 Unit
मूल्य: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
संपर्क करें
विस्तृत उत्पाद विवरण
Product Name: Trailer Dump Truck Model: 3 Axles 30-60Tons
Fifth Wheel: #50, #90 Loading capacity: 30-60tons
Dimension of Flat: 12600*3000mm Axles: 3X16 tons
Material: Carbon steel or Mn steel Landing gear: 28T JOST
हाई लाइट:

Semi Trailer Dump Truck

,

hydraulic flatbed trailer

Description:



Trailer Dump Truck 3 Axles 60Tons 11m for Mining and Construction business

Our company semi trailer truck series,is applied to the transportation of all kinds of

mechanical equipment, big size articles,road construction equipment ,big size tank body

power station equipment and all kinds  of steels .widely using ,high efficiency .whole

vehicle adopts advanced computer aided design for  optimization design ,flexible and

various ,to design carrying flat according to the requirements of  customers.to meet

various of special goods transportation needs.



Specification:



Trailer Dump Truck 3 Axles 60Tons 11m for Mining and Construction business

Model 3 Axles 60Tons
Axle

FUWA brand, 16ton, 3 Sets

Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Dimension of Cargo body

8000*2300*1800mm, Floor:8mm, side:6mm

Material

Carbon steel or Mn steel

Gross vehicle weight

70000kgs

King pin

#90

Support leg

JOST Standard 28T

Suspension

Normal suspension

Thickness leaf spring

10/10/10

Tire/Rim

1200R20, 13pcs, 8.5, 12 pcs

Brake Chamber

Standard 6 pcs

Spare wheel carrier

2 pcs

Tool box

1 pcs

Electrical System

Chinese standard 24C lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

Overall dimension

16000×2500×3880(mm)

Color White, red, green, golden and so on.




Applications:



It suitable for a Mining and Construction bussiness.



Competitive Advantage:



1)Our company produces flat semitrailer divided into flat, concave beam and tire exposed structure,  beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is

 I-shaped, has high anti breaking strength and bearing capacity.

2)The main plane of the frame is low, which ensures the smooth transportation, and is suitable for  carrying all kinds of engineering machinery, large equipment and steel.

3)Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged between the front and rear leaf springs.

4)the key parts adopt the world's top technology products

5)based on strong technical support and top level technology make the trucks with high quality and more reliable

6)competitive price, cost-effective

7)quick and efficient spare parts supply bring you more convenient

8)fast delivery time, we can arrange production according to your needs exactly and Quickly

9)professional import and export dealing procedure, make customs clearance more high efficiency

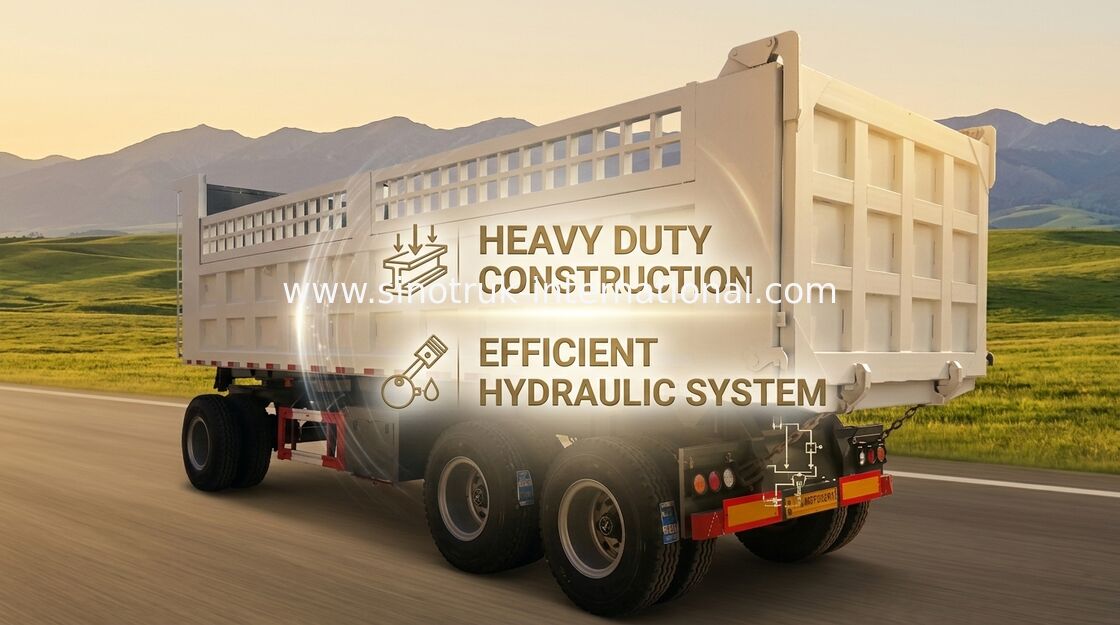

Trailer Dump Truck 3 Axles 60Tons 11m for Mining and Construction business 0
