| Product Name: | Tipper Dump Truck | Model: | ZZ3257N3847A |
|---|---|---|---|
| Drive type: | LHD 6X4 | Emission Standard: | Euro 2 |
| Engine: | WD615.47, 371HP | Cargo body: | 5800*2300*1500mm |
| Loading capacity: | 30-40tons | ||
| हाई लाइट: | sinotruk howo dump truck,commercial dump truck |
||

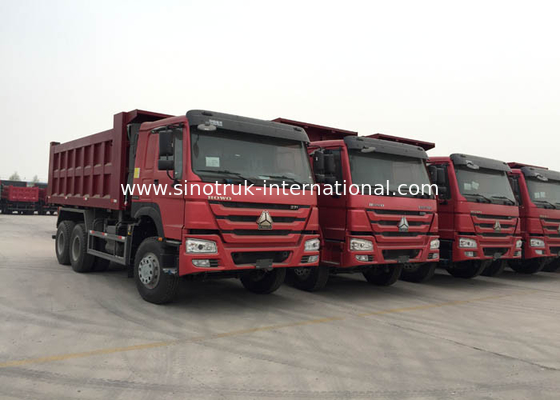

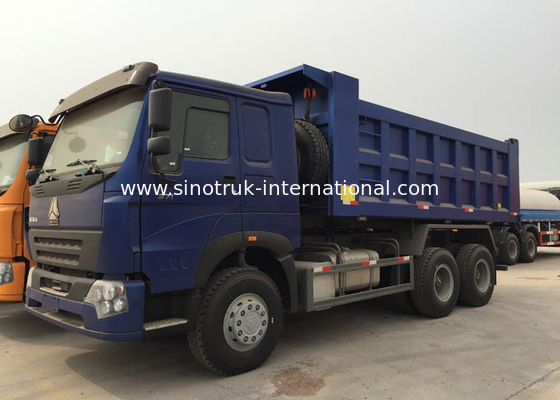

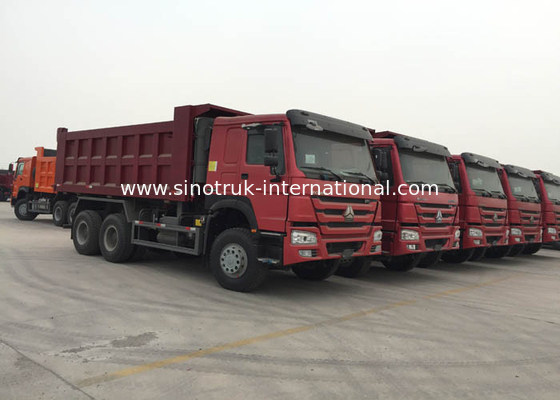

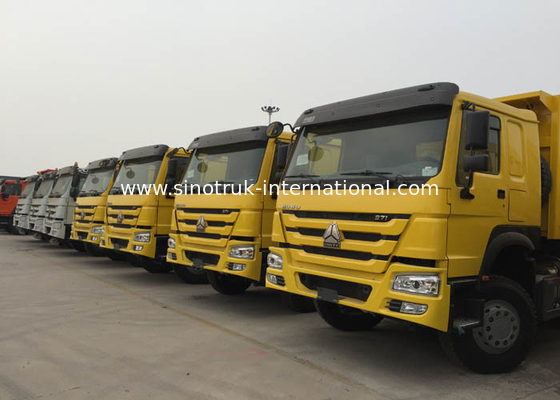

SINOTRUK HOWO Mining Tipper Dump Truck 6X4 LHD 371HP 25-40Tons ZZ3257N3847A
Description:
This type truck is the famouce brand of CNHTC group in world marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.full expression of heavy duty truck concept. Delicate design, excellent technology, which have the advantages of Comfort, safety, reliability, electronic level geared to international level. Low fuel consumption.
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and 10×6 etc.
Power range: 266PS - 420PS.
Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system
Specification:
|
SINOTRUK HOWO Minig Tipper Dump Truck 6X4 LHD 371HP 25-40Tons ZZ3257N3847A |
||||
| Model | ZZ3257N3847A | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8575×2496×3450(mm) | |||
| Cargo body |
5800×2300×1500(mm),Bottom:8mm, Side:6mm |
|||
| The curb weight | 12200(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
It used for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1)competive price, cost-effective
2)quick and efficient spare parts supply bring you more convenient
3)fast delivery time, we can arange production according to your needs exactly and
quickly
4) professional import and export dealing precedure, make customs clearance more high efficiency
5)all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
6)using the high strength steel, make it has a long service life
7)The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
8)excellant apperance of cabin, safety, reliable
9)low fuel consumption
10) strong enough engine
11)with all kinds of truck model, which can fulfil your requirements
12)the key parts adopt the world's top technology products
