Name: SINOTRUK HOWO 6×4 10wheels Concrete Mixer Truck 400HP Two Warning Lights
Brand: SINOTRUK INTERNATIONAL CO., LTD.
SKU: ZZ1257N3847W
Price: 48,750.00 USD
Availability: InStock

होम उत्पाद कंक्रीट मिश्रक ट्रक

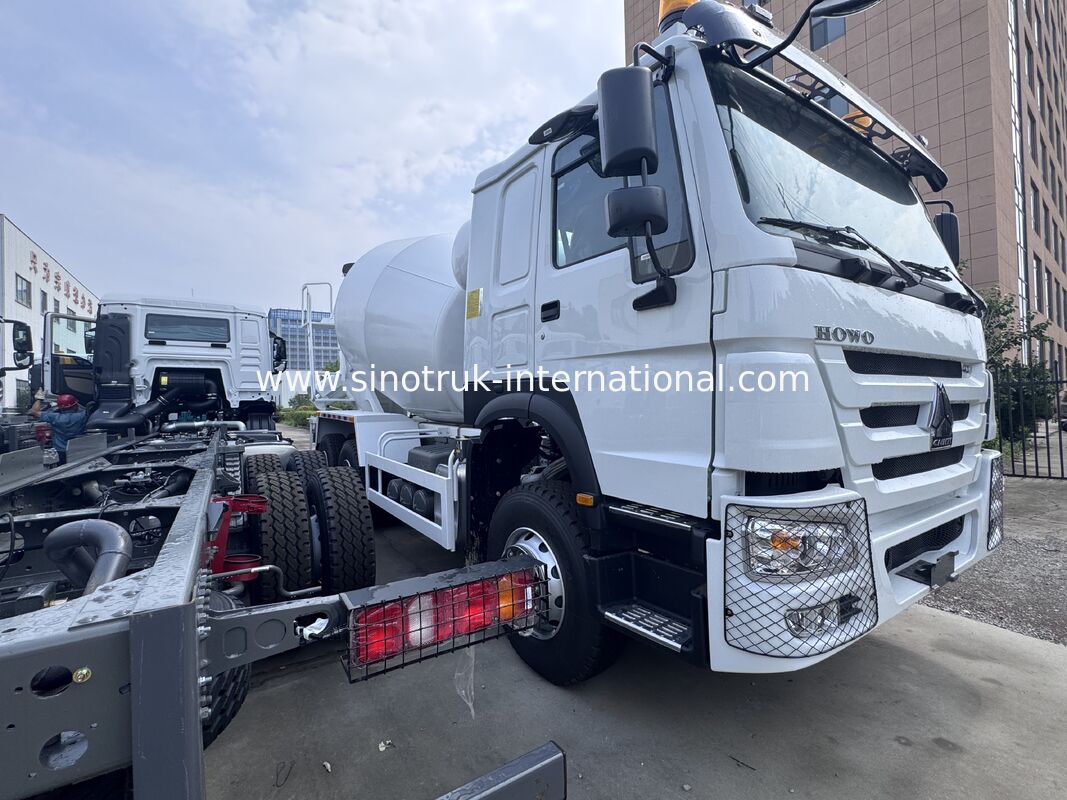

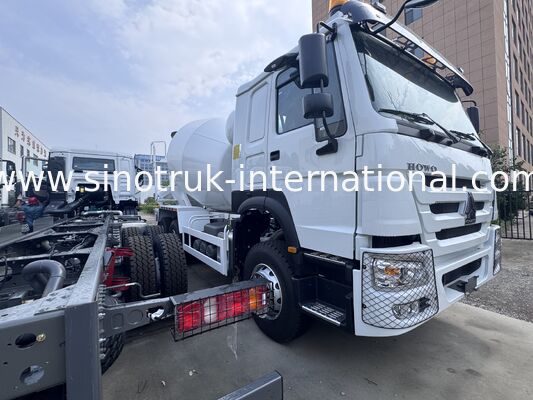

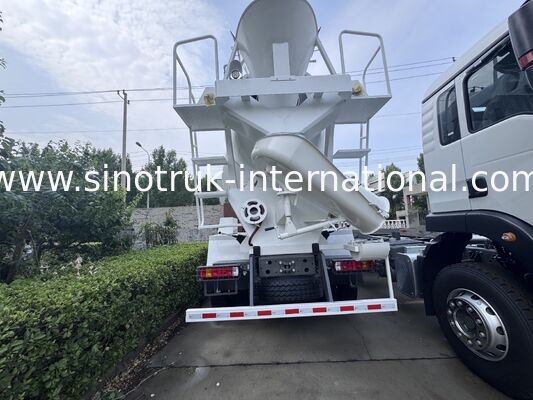

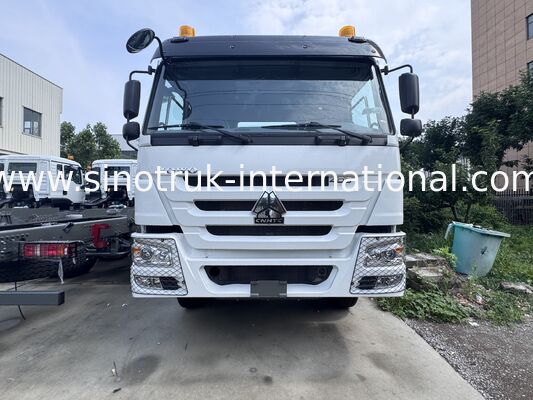

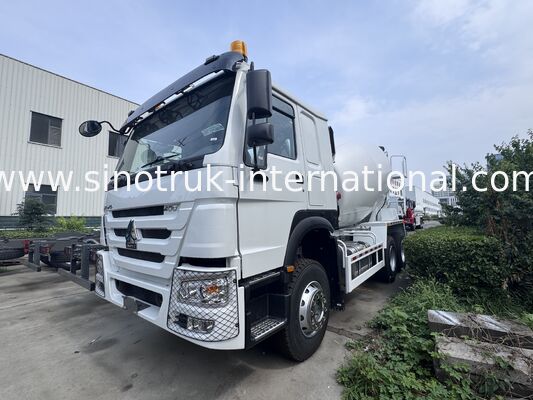

SINOTRUK HOWO 6×4 10wheels Concrete Mixer Truck 400HP Two Warning Lights

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	HOWO
प्रमाणन:	ISO/3C/BV/IFA/SGS
मॉडल संख्या:	ZZ1257N3847W

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 एकजुट
मूल्य:	विनिमय योग्य
पैकेजिंग विवरण:	रोरो या बल्क जहाज में नग्न या वैक्सिंग
प्रसव के समय:	आपका अग्रिम भुगतान प्राप्त करने के 25-30 दिन बाद
भुगतान शर्तें:	टी/टी
आपूर्ति की क्षमता:	3000 प्रति माह

संपर्क करें

विस्तृत उत्पाद विवरण

नमूना:	ZZ1257N3847W	टैंक निकाय क्षमता:	10 सीबीएम
इंजन:	WP12.400E201,400 एचपी (यूरो II)	कैब:	HW76
रंग:	सफ़ेद	उत्सर्जन मानक:	यूरो 2
प्रमुखता देना:	SINOTRUK HOWO 6×4 concrete mixer truck , 10wheels concrete mixer truck 400HP , concrete mixer truck two warning lights

SINOTRUK HOWO 6×4 10wheels Concrete Mixer Truck 400HP Two Warning Lights

Description:

HOWO mixer, suitable for urban construction, highway, railway and other departments. Stirring truck is one of the indispensable important equipment in mechanized construction. The body material is made of special wear-resistant alloy material. The concrete mixing transport uniformity is good. Loading and discharging
Fast speed, low slag discharge rate, reliable hydraulic system, easy to operate, beautiful appearance.

Specification:

Sinotruk Howo Concrete Mixer Truck 10-20CBM 6 x 4 Euro 2 340Hp Construction

Model

ZZ1257N3847W

Drive Type

6×4

Engine

WP12.400E201,400 HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 11.596L

Cabin

HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)

Transmission

HW19710(10 forwards & 2 reverses)

Front Axle

1×VGD95 ( 9.5 Tons)

Driving Axle

2×HC16, 2×16Tons

Steering

BOSCH or China brand hydraulic steering with power assistance.

Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire

11.00R20,12.00R20,12.00R24 Radial tire

Wheel base

3800+1350(mm)

Overall dimension

8075×2600×3000(mm)

Tank body Capacity

10-20CBM

The curb weight

12650(Kg)

Gross weight

31000 kg

Max. speed

102km/h

Color

White, red, green, golden and so on.

Applications:

t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other

infrastructure construction business.

Competitive Advantage:

1) Leading product technology, complete functions, excellent performance, reliable quality, easy to operate.
2) Valve body structure optimization, special mold production, beautiful appearance, concrete mixing uniform, uniform discharge, low residual rate.
3) Imported hydraulic pump, hydraulic motor, reducer.
4) The method of multi-phase three-dimensional mixing with large blades is adopted inside the mixer, which is more in line with the characteristics of Chinese concrete, with fast feed and feed speed and lower residue rate
5) Overall structure optimization, low center of gravity, high operating efficiency.
6) Wide product range, tank capacity 6 ~ 18 cubic meters.
7) Choose a variety of auxiliary devices.
8) The tank material is made of the latest generation of high-strength wear-resistant steel for mixing trucks, and the blades are equipped with wear-resistant strips, which makes the service life longer than that of ordinary tanks
9) Rely on strong technical support and first-class technology to make the truck high quality and more reliable
The price is competitive and cost-effective
11) Fast and efficient spare parts supply, to bring you more convenience
12) Fast delivery time, we can quickly and accurately arrange production according to your needs
13) Professional import and export transaction process to improve customs clearance efficiency
