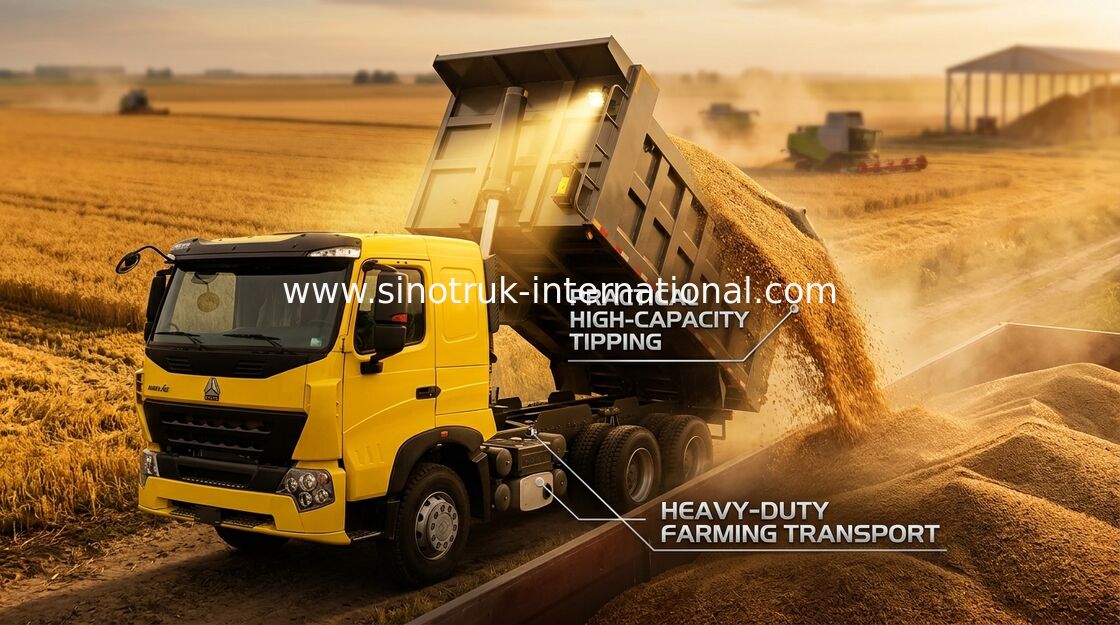

Construction Industry Tipper Dump Truck 30 - 40 Tons Sinotruk Howo Dump Truck

Construction Industry Tipper Dump Truck 30 - 40 Tons Sinotruk Howo Dump Truck

  • Construction Industry Tipper Dump Truck 30 - 40 Tons Sinotruk Howo Dump Truck
  • Construction Industry Tipper Dump Truck 30 - 40 Tons Sinotruk Howo Dump Truck
  • Construction Industry Tipper Dump Truck 30 - 40 Tons Sinotruk Howo Dump Truck
  • Construction Industry Tipper Dump Truck 30 - 40 Tons Sinotruk Howo Dump Truck
Construction Industry Tipper Dump Truck 30 - 40 Tons Sinotruk Howo Dump Truck
उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: SINOTRUK HOWO A7
प्रमाणन: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3847N1
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1 Unit
मूल्य: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
संपर्क करें
विस्तृत उत्पाद विवरण
Product Name: Tipper Dump Truck Model: ZZ3257N3847N1
Drive type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.69, 336HP Loading capacity: 60 - 70 tons
हाई लाइट:

heavy dump truck

,

sinotruk howo dump truck

SINOTRUK HOWO A7 Tipper Dump Truck 30 - 40 Tons For Construction or Mining Industry



Description:



SINOTRUK HOWO A7 Tipper Dump Truck 30 - 40 Tons For Construction or Mining Industry

This model can meet the requirements of severe environment like construction site and

mining area.which can fullfiled you of short distance transportation of mining rock and

soil as well as engineering construction.



Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on. Power range: 266HP - 420HP.

High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.



This type product , with features of reliable structure , high loading capacity which can

load 30-60tons,strong power from 266HP to 420HP,reliable performance and wide

acceplication.





Specifications:




Tipper Dump Truck SINOTRUK HOWO A7 30-40tons for Mining industry ZZ3257N3847N1
Model ZZ3257N3847N1
Drive Type 8×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating

with air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1) Optimized cargo body structure,light weight,high rigidity,large loading capacity

2) Using the high strength steel,it has long service life

3) Optimized the sealing structure has the better sealing effect.

4)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

 running efficiency.

5) Multiple box structures and device selections

6) strong power and low fuel consumption

7) quick delivery time

8) fast and enough spare parts supply

9) speicalize maintainace service

10) competive price, cost-effective

11) fast delivery time, we can arange production according to your needs exactly and quickly

12) professional import and export dealing precedure, make customs clearance more high efficiency
