| Product Name: | Tractor Truck | Model: | ZZ4257S3241W |
|---|---|---|---|
| Drive type: | RHD 6X4 | Emission Standard: | Euro 2 |
| Engine: | D12.38, 380HP | Fifth Wheel: | #50, #90 |
| Traction capacity: | 60-70tons | Color: | orange |
| हाई लाइट: | tractor trailer truck,howo tractor truck |
||

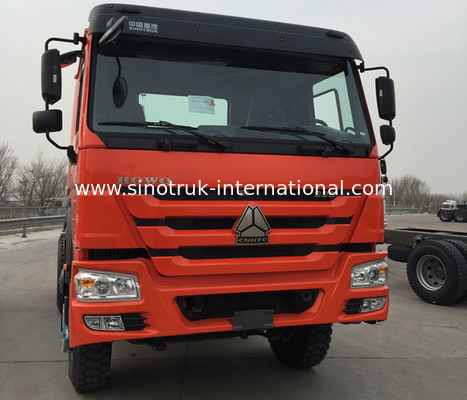

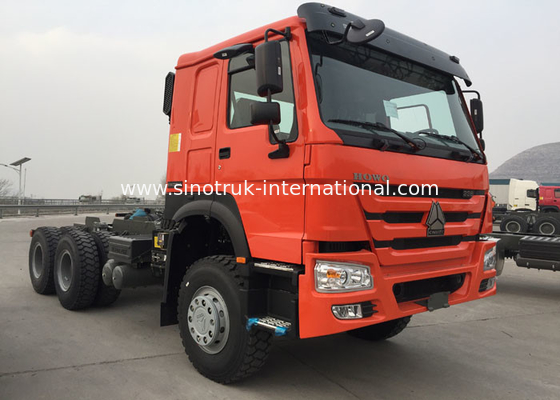

SINOTRUK HOWO Tow Tractor Truck RHD 10 Wheels 371HP ZZ4257S3241W orange color
Description:
SINOTRUK HOWO Tow Tractor Truck RHD 10 Wheels 371HP ZZ4257S3241W orange color
The first version of the highway transport is equipped with aluminum shell transmission MCY13 (Q) single reduction drive axle and other lightweight configuration, mainly used for standard load level (It means that the total weight of tractor train within 55 tons, the total weight of bike within 41 tons); When the first version of the tractor adopts the plate spring suspension, disc brake MCY13 (Q) single stage drive axle can be opted.

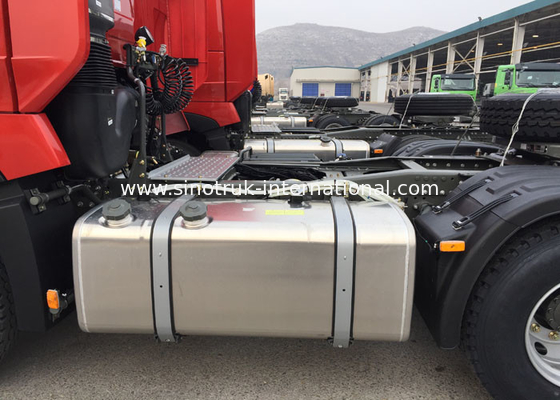

CNHTC owns several national patents for aluminum alloy fuel tanks and is the first manufacturer starting the mass production. The product quality is well guaranteed by the most advanced welding production line and full-process monitoring over the welding. Presently, the tank capacity includes 200L, 240L, 250L, 350L, and 400L and the round, D-shaped and square structure shapes can meet the different customers' demands. The aluminum alloy fuel tank is featured in light weight, high strength and excellent corrosion resistant performance to avoid the tank internal corrosion, enhance the fuel clearning degree and prolong the service life of engine.
Specification:
|
SINOTRUK HOWO Tow Tractor Truck RHD 10 Wheels 371HP ZZ4257S3241W orange color |
||||
| Model | ZZ4257S3241W | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW76(with single sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8098 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire |
12R22.5 tubeless tyre 11.00R20,12.00R20,12.00R24 Radial tire |
|||
| Wheel base | 3200+1350(mm) | |||
| Overall dimension |
6800×2496×2958(mm) |
|||
|
Fifth Wheel |
#50, #90 |
|||
| The curb weight | 9180(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 102km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and
Mining area .
Competitive Advantage:
1)with all kinds of truck model, which can fulfill your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high quality and more reliable
4)it has higher safety and running efficiency.
5)excellent appearance of cabin, safety, reliable
6)low fuel consumption
7)strong enough engine
8)competitive price, cost-effective
9)quick and efficient spare parts supply bring you more convenient
10)fast delivery time, we can arrange production according to your needs exactly and Quickly
11)professional import and export dealing procedure, make customs clearance more high efficiency
